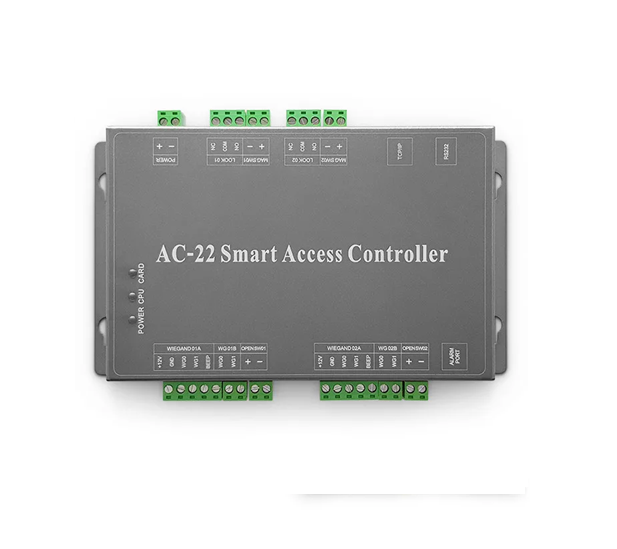

AC-22 CONTROLADOR DE ACCESO DE 2 PUERTAS CON INTERLOCKING JUTAI
Feature Highlight
Support Single Door / 2 Doors
Unlimited Access Level
Support Car Park Mode
Support Dynamic Reader Location
Compatible with Various Reader Technologies
Peer To Peer Global Anti-Passback
Configurable Digital /Supervised Inputs (8)
Event Based Triggering (EBT)
Unlimited Access Level
Onboard &Cross-Board Interlocking
User Counting (Card Holder / Car Park)
Advance Encryption Standard (AES)
Reader Output Control
Support 26,000 Users And 100,000 Events Memory
Function Features
Remotely managed using standard web browser
Connect to any Wiegand or Hi-O reader.Supports up to 4readers
Web Browser Security —uses SSL 3.0(Secure Socket Layer)and TLS
(Transport Layer Security)to establish a secure web browser connection
Network Configuration—Works within DHCP or Static IP networks for plug and play installation
Multi Language Support—English and chinese for selection
IP INTELLIGENCE CONTROLLER INTEGRATED JUTAI SMART READER
Cost-Effective-Uses Power over Ethernet (PoE)to power reader and door strike.Eliminates the need for separate power supplies for many situations
Remote Management-Managed over the network through a standard web browser.No software installation necessary
Integrated wigand/rs485/TCP/IP Reader,The included reader/controller reads EM/M1 cards and opens the door;a secure,side-mounted door interface module places door contact in a secure area
Scalable-Can be remotely reconfigured through the web browser from stand-alone operation to a system controller in a host environment of multiple controllers
All-in-One UI Page —“Door Dashboard”accesses door commands,status,alarms,and recent events from all screens Back-up and restore of data from user PC
Manages Card only,PIN only,Card and PIN transactions
Manages up to 260000 cardholders/credentials
Manages 64 schedules
View last 100000 events
Standardized report generation,including CSV export
First Person In (Snow day)and PIN suppression schedules
Wet or dry door relays,including 12 VDC wet relay lock support
Interface to Hi-O door hardware and Hi-O compliant readers provides streamlined and smart installation
SKU :
AC-22
